Product Line
Signal Conditioning Boards
The SMD Engineering team includes experienced electronics engineers who can design fully integrated sensor solutions to provide precise and accurate outputs. Electronics can be designed for a range of uses including filtering, averaging, temperature compensation and calibration.
Featured Model
Model E120
Current Loop Transmitter
The E120 accepts a millivolt bridge signal from any SMD load cell or pressure sensor and converts it to the industry-standard 4-20 mA current loop output — directly compatible with PLCs, SCADA systems, and process controllers. Loop-powered, compact PCB format, programmable span and zero for OEM integration.
Output
4-20 mA current loop
Type
Current loop transmitter
Standard
Industrial standard
Applications
Process control integration
Industries Served
Where our signal conditioners are used
Medical Devices
Sensor-to-display solutions, I2C and analog for embedded medical
Semiconductor & Lab
USB data acquisition, RS232 for analytical instrumentation
Industrial & Process
4-20 mA for PLC integration, SCADA systems
Wireless OEM
Bluetooth output for battery-powered or cable-free applications
Test & Measurement
Calibration instruments, data loggers, lab DAQ systems
Biopharmaceutical
Load cell readout for bioreactors, media, and filtration systems
Fluid Systems
Pressure transmitters, flow and level signal integration
Food & Dispensing
Gravimetric dispensing, portion control, scale readout
Choosing the Right Model
Signal Conditioning Protocols & Outputs
We offer almost any analog or digital protocol, including sensor I2C output, SPI, PWM, sensor USB output, 4-20mA load cell conditioning, 0-5V conditioning — along with wireless sensors utilizing Zigbee or Bluetooth. Whether you need miniature electronics to communicate directly with your infusion pump's microprocessor, a precisely calibrated output to feed directly into your PLC, or a device to easily gather data from a load cell in your lab, SMD can customize a product for your application.
If you need
Process control loop / PLC integration
Start with
E120
Industry-standard 4-20 mA current loop output, loop-powered, compact PCB.
If you need
Microcontroller or embedded I2C / analog output
Start with
E110
E110-001 gives 0-5 VDC; E110-002 gives I2C digital — both programmable with calibration.
If you need
PC data acquisition via USB or RS232
Start with
E370
RS232 output with USB adapter (E370-DB9) for system monitoring and data logging.
If you need
Multi-channel or complex measurement system
Start with
SMD-4150
Advanced multi-channel programmable conditioner for complex OEM measurement requirements.
Signal Conditioning Models
| Model | Name | Output | Interface | Notes | ||
|---|---|---|---|---|---|---|

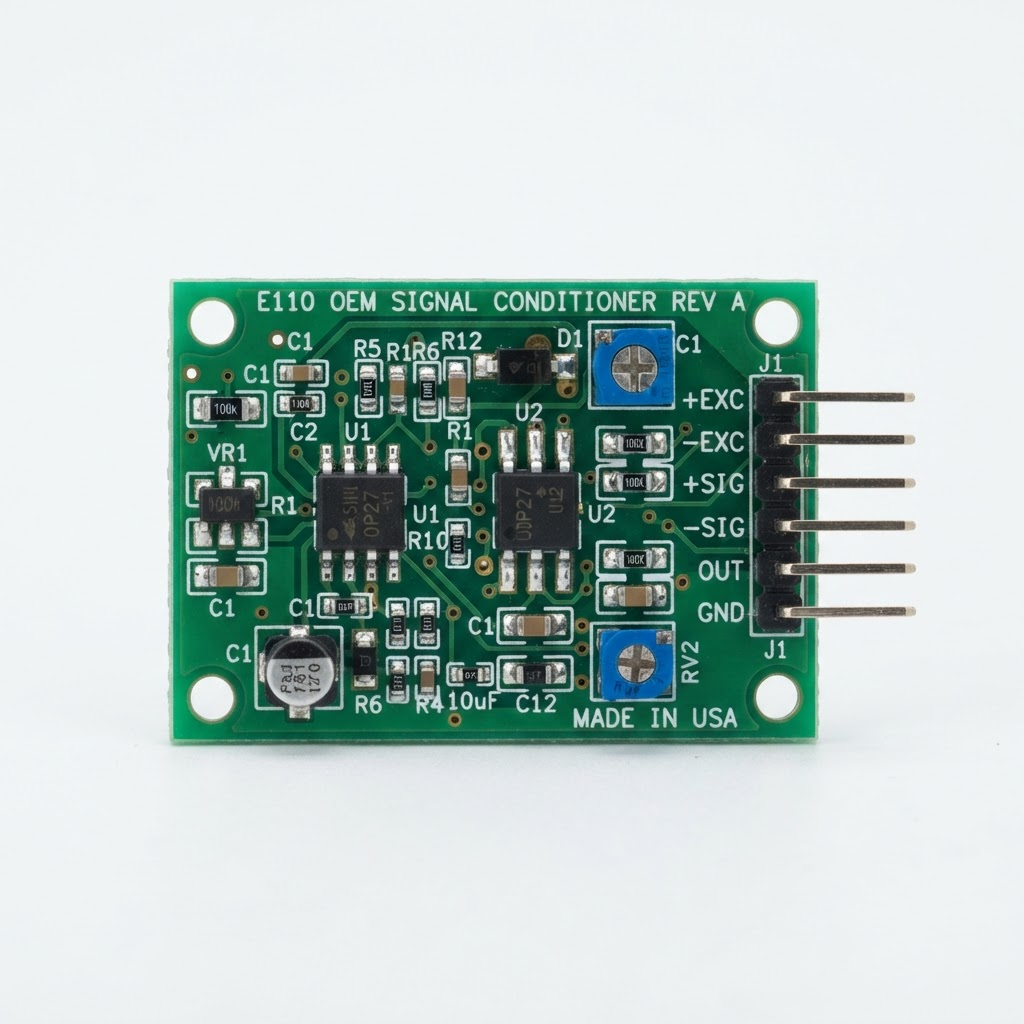

 | E110 | Signal Conditioning Board | 0-5 VDC or I2C | Analog / I2C | Two variants: E110-001 (0-5 VDC analog) and E110-002 (I2C digital). Programmable calibration, OEM PCB format for load cells and pressure sensors. | View Product |
| E120 | Current Loop Transmitter | 4-20 mA current loop | Analog (loop-powered) | Industry-standard 4-20 mA output, loop powered, compact PCB. Direct integration with PLCs, SCADA, and process controllers. | View Product |

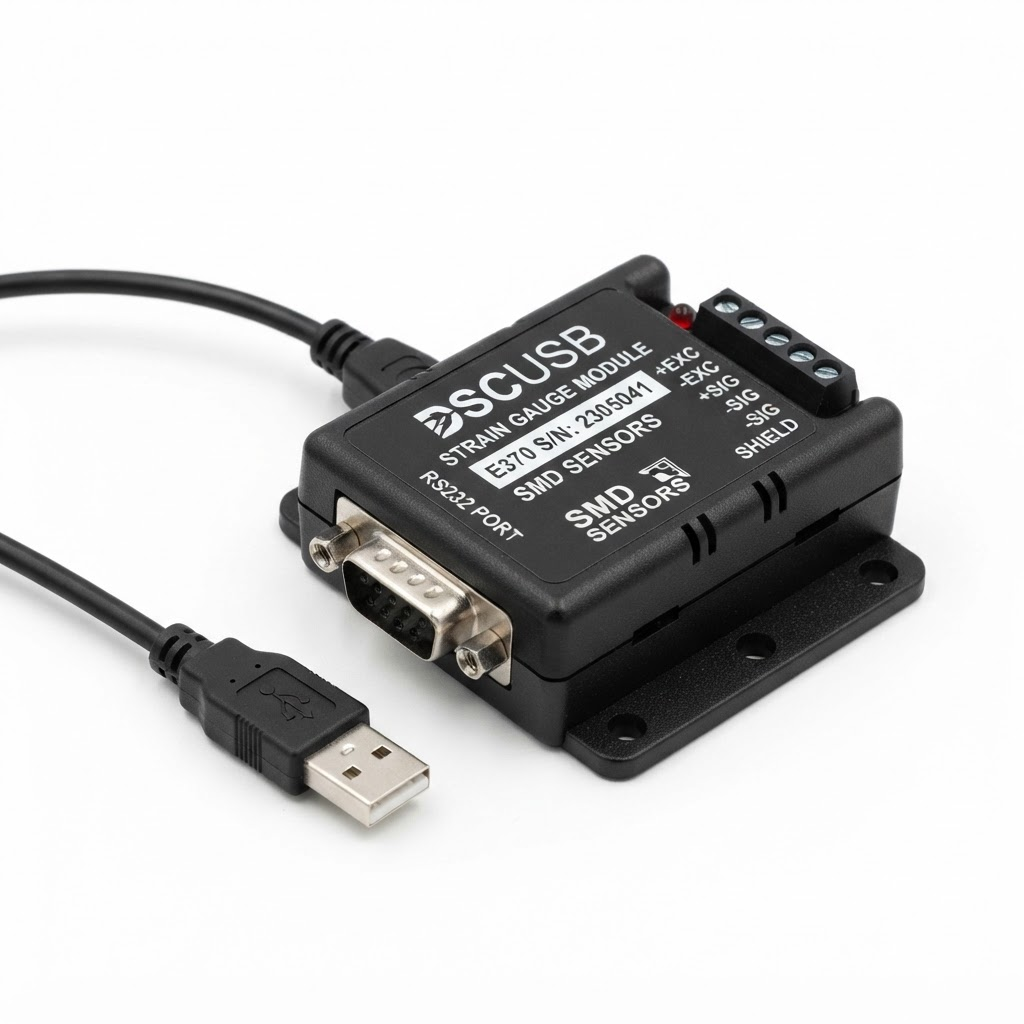

 | E370 | DSCUSB Strain Gauge Module | RS232 / USB | RS232, USB (DB9 adapter) | Available as E370 (RS232) and E370-DB9 (USB). System monitoring, PC-based data acquisition and data logging. | View Product |

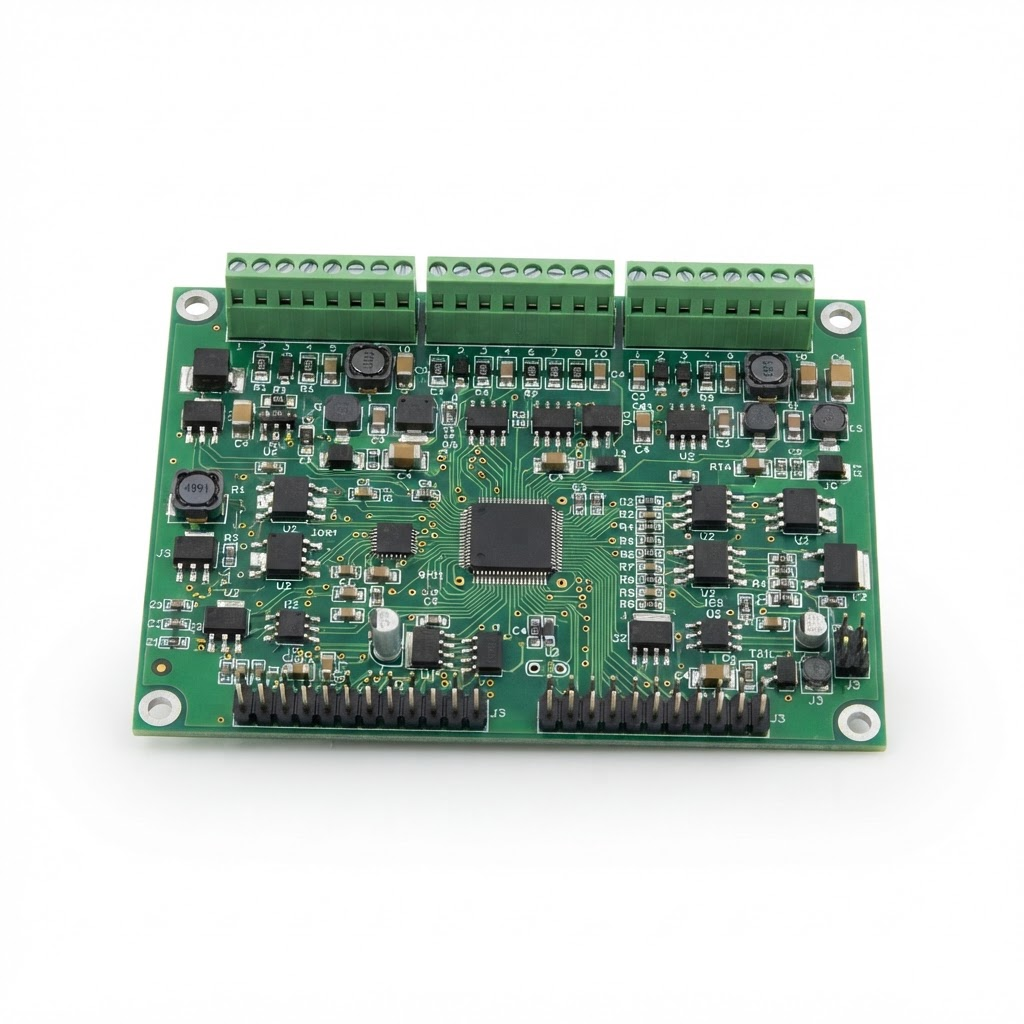

 | SMD-4150 | Advanced Signal Conditioner | Multi-channel, programmable | Multiple protocols | Advanced programmable conditioner for complex multi-channel measurement systems with extensive protocol and output options. | View Product |
