Product Line

Pressure Sensors Engineered To Perfection

Strain Measurement Devices' miniature technology provides medical devices with precise noninvasive measurement of pressure and flow while offering control and validation of fluid deliveries in disposable sets. The extreme accuracy and repeatability in our OEM solutions provide key advantages for a variety of mission-critical applications. Pressure sensors are also ideal for harsh, high-pressure environments.

Featured Model

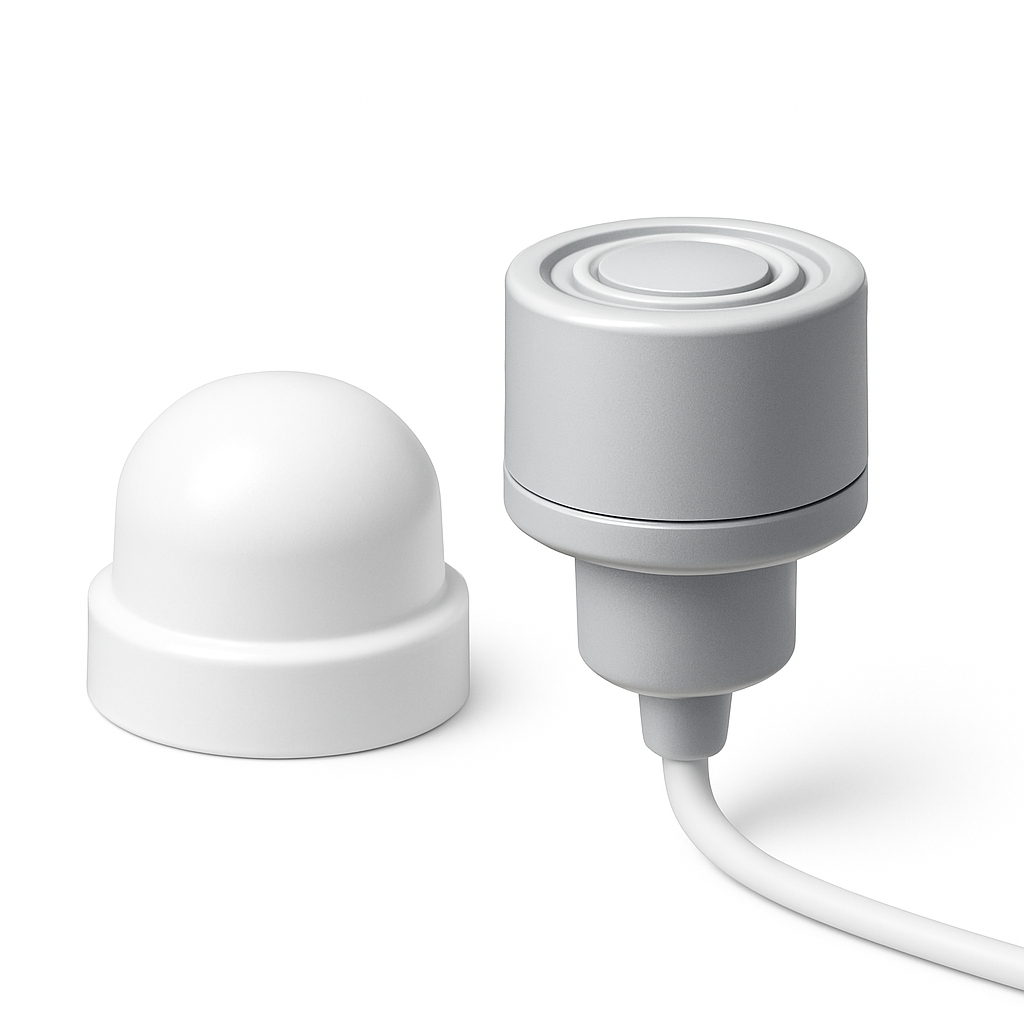

N365 Non-Invasive Pressure Sensor
Non-Invasive

Model N365

Non-Invasive Pressure Sensor

The N365 measures pressure through the wall of flexible tubing without any fluid contact. A reusable sensor body pairs with a low-cost disposable dome — eliminating contamination risk and enabling single-use disposable circuit designs. Dual output: I2C digital and 0–5V analog.

Design

Non-invasive pressure sensor

Configurations

Multiple available

Technology

Thin-film strain gauge

Applications

Medical · Industrial Fluid Handling

View N365 Request a Quote

Industries Served

Where our pressure sensors are used

Medical Devices

Ventilators, infusion pumps, dialysis

Biopharma

Single-use bioreactors, filtration

Semiconductor

Process gas, ultrapure water, CMP

Industrial OEM

Hydraulics, compressors, HVAC

Fluid Systems

Dispensing, dosing, flow control

Test & Measurement

Calibration, lab instrumentation

Energy

Turbines, heat exchangers, cooling

Aerospace

Avionics, fuel systems, actuation

Choosing the Right Sensor

Proprietary Thin Film Strain Gauge

Our thin-film strain gauge process gives our sensors unsurpassed long term stability, even in the harshest environments. With our proprietary process of sputtering the circuit directly onto the pressure, the sensor surface is optimal for high-temperature environments. SMD can craft standard and custom designs with short lead times using nearly any material including aluminum, stainless steel, Hastelloy™, and sapphire. Customers have the option of welding these pressure sensors to a fitting or component of their choice. SMD Sensors provides welding services.

If you need

Fluid must not touch the sensor

Start with

N365

Non-invasive, zero fluid contact, disposable dome.

If you need

High-purity or oxygen service

Start with

P940 Sapphire

No fill fluid, no elastomers, silicon-on-sapphire element.

If you need

High temperature or autoclave cycles

Start with

B472

Rated to 300°C, CIP/SIP compatible, Hastelloy wetted parts.

If you need

Compact OEM integration

Start with

P571

Full accuracy in a miniature 0.5" hex body for tight packaging.

Product Selector

51 models match your filters

ModelPart NumberMaximum Pressure (psi)Diameter (in)Height (in)Material
N365
N365N365-00130psi0.95in0.42inStainless SteelGet Specs

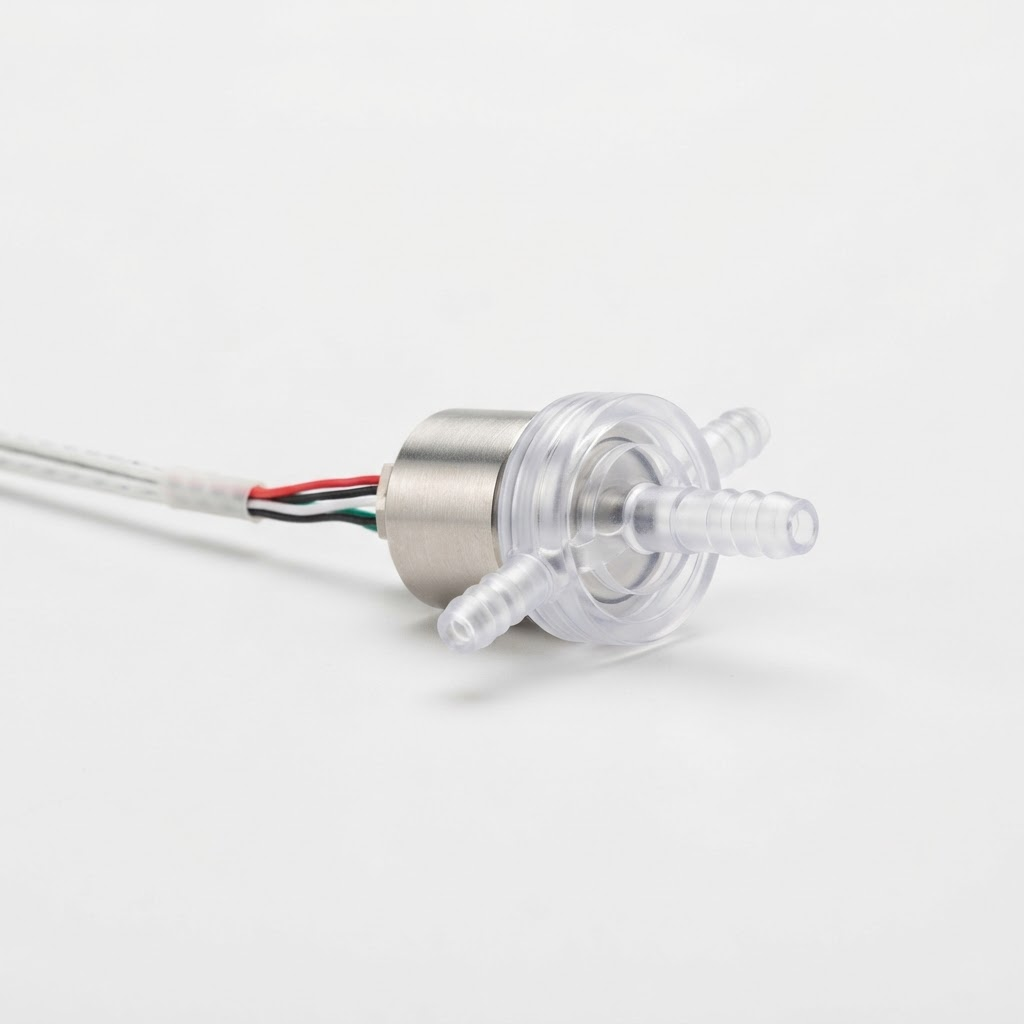

N350
N350N350-00130psi0.95in0.42inStainless SteelGet Specs

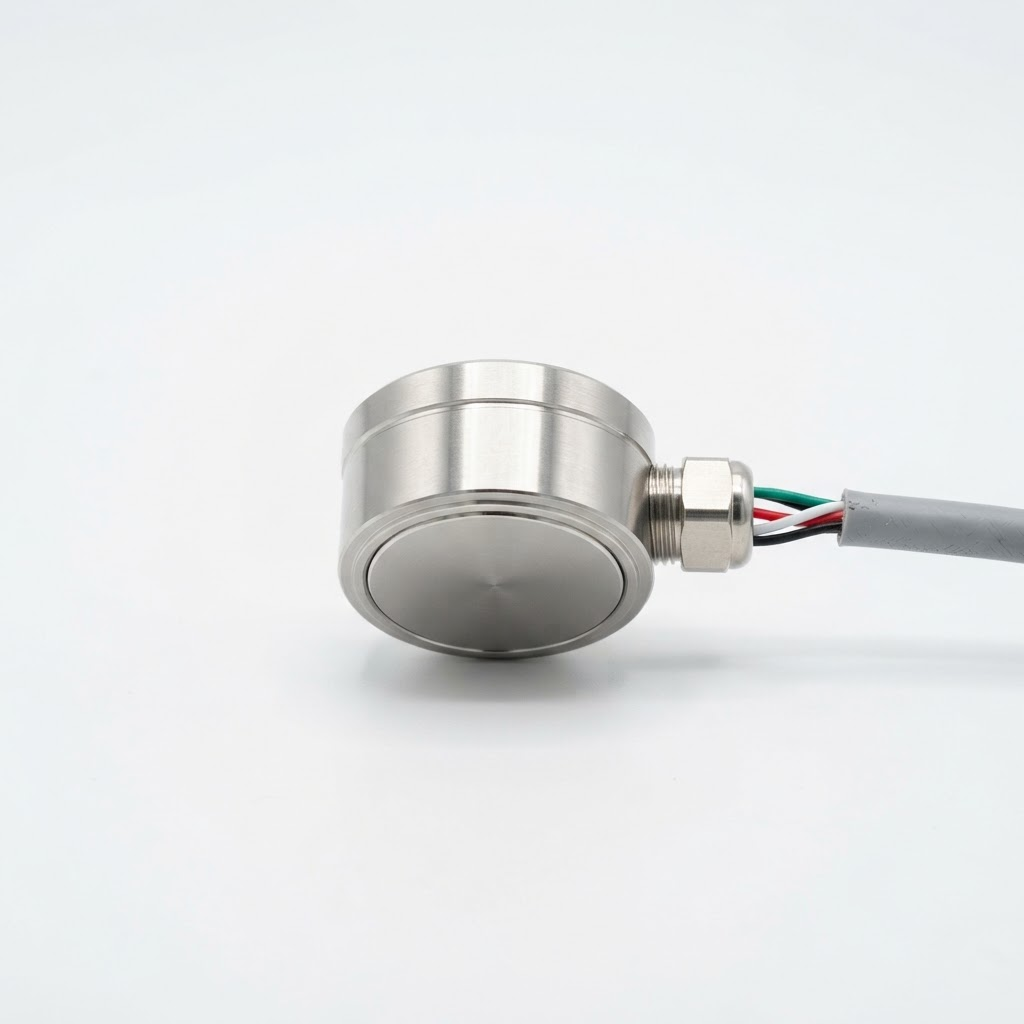

P30
P30P30-00130psi1.2in0.5inStainless SteelGet Specs
B354-16bar
B354-16barB354-016232psi0.354in0.157inStainless SteelGet Specs
B354-25bar
B354-25barB354-025363psi0.354in0.157inStainless SteelGet Specs
B354-40bar
B354-40barB354-040580psi0.354in0.157inStainless SteelGet Specs
B354-60bar
B354-60barB354-060870psi0.354in0.157inStainless SteelGet Specs
B354-100bar
B354-100barB354-1001,450psi0.354in0.157inStainless SteelGet Specs
B354-160bar
B354-160barB354-1602,321psi0.354in0.157inStainless SteelGet Specs

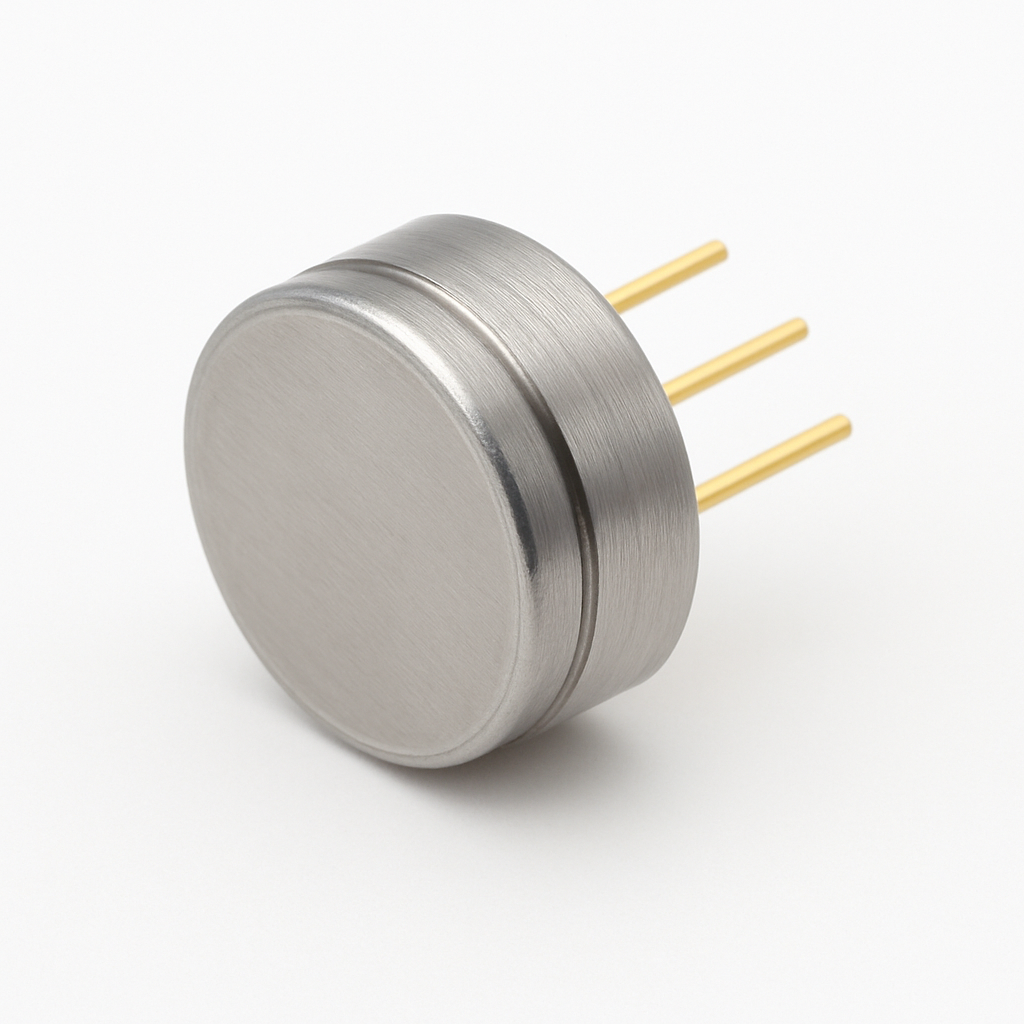

B354-250bar
B354-250barB354-2503,626psi0.354in0.157inStainless SteelGet Specs
B354-400bar
B354-400barB354-4005,802psi0.354in0.157inStainless SteelGet Specs
B354-600bar
B354-600barB354-6008,702psi0.354in0.157inStainless SteelGet Specs
B354-1000bar
B354-1000barB354-100014,504psi0.354in0.157inStainless SteelGet Specs

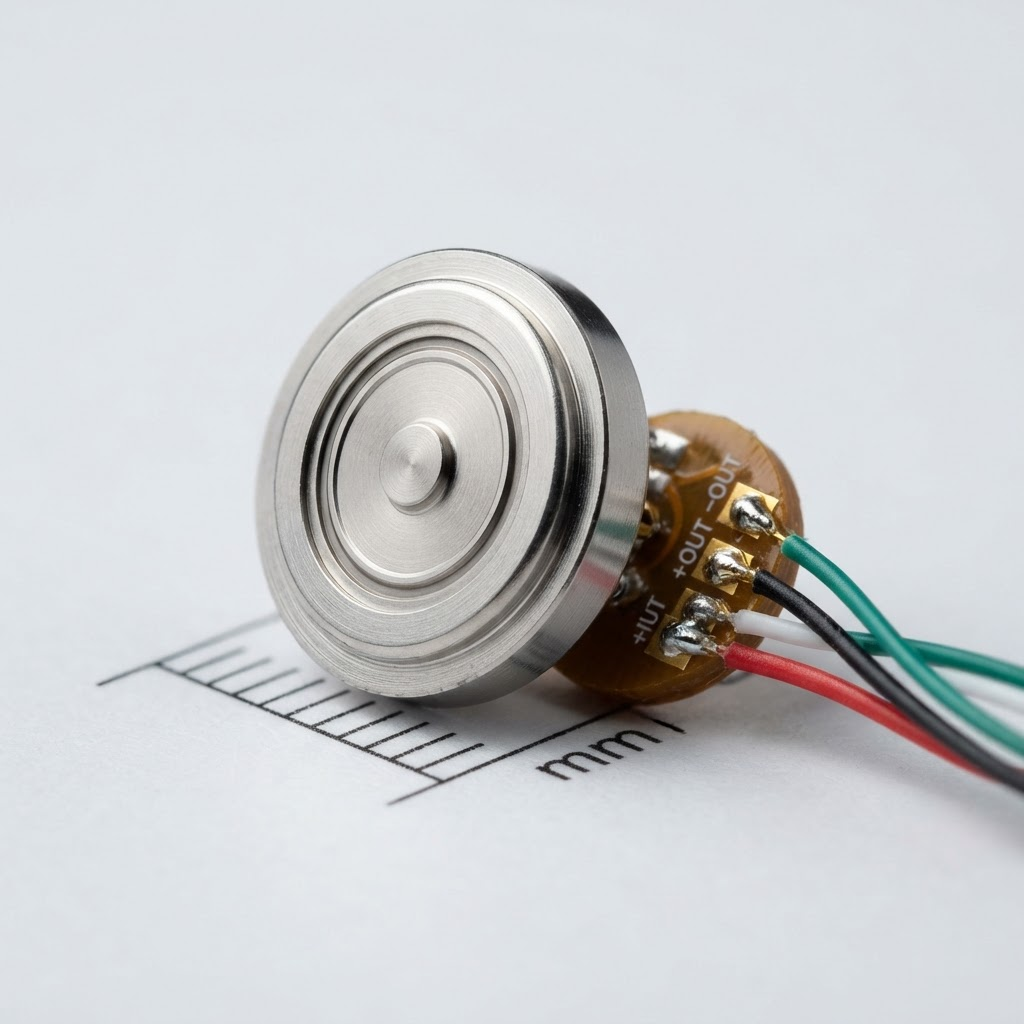

B472-6bar
B472-6barB472-00687psi0.471in0.236inStainless SteelGet Specs
B472-10bar
B472-10barB472-010145psi0.471in0.236inStainless SteelGet Specs
B472-16bar
B472-16barB472-016232psi0.471in0.236inStainless SteelGet Specs
B472-25bar
B472-25barB472-025363psi0.471in0.236inStainless SteelGet Specs
B472-40bar
B472-40barB472-040580psi0.471in0.236inStainless SteelGet Specs
B472-60bar
B472-60barB472-060870psi0.471in0.236inStainless SteelGet Specs
B472-100bar
B472-100barB472-1001,450psi0.471in0.236inStainless SteelGet Specs
B472-160bar
B472-160barB472-1602,321psi0.471in0.236inStainless SteelGet Specs
B472-250bar
B472-250barB472-2503,626psi0.471in0.236inStainless SteelGet Specs
B472-400bar
B472-400barB472-4005,802psi0.471in0.236inStainless SteelGet Specs
B472-600bar
B472-600barB472-6008,702psi0.471in0.236inStainless SteelGet Specs
B472-1000bar
B472-1000barB472-100014,504psi0.471in0.236inStainless SteelGet Specs

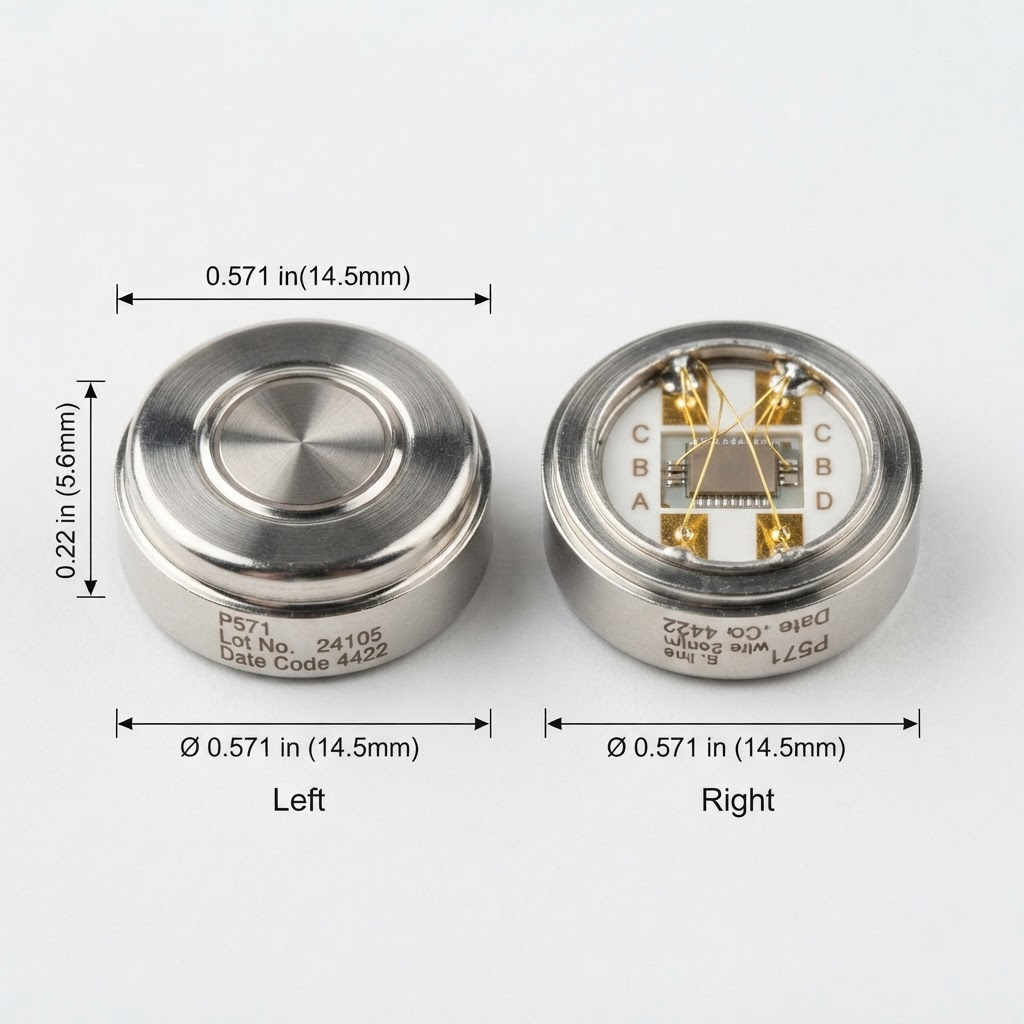

P571-100
P571-100P571-100100psi0.571in0.219inStainless SteelGet Specs
P571-160
P571-160P571-160160psi0.571in0.219inStainless SteelGet Specs
P571-500
P571-500P571-500500psi0.571in0.219inStainless SteelGet Specs
P571-1000
P571-1000P571-10001,000psi0.571in0.219inStainless SteelGet Specs
P571-1500
P571-1500P571-15001,500psi0.571in0.219inStainless SteelGet Specs
P571-3000
P571-3000P571-30003,000psi0.571in0.219inStainless SteelGet Specs
P571-4000
P571-4000P571-40004,000psi0.571in0.219inStainless SteelGet Specs
P571-5000
P571-5000P571-50005,000psi0.571in0.219inStainless SteelGet Specs
P571-6000
P571-6000P571-60006,000psi0.571in0.219inStainless SteelGet Specs
P571-10000
P571-10000P571-1000010,000psi0.571in0.219inStainless SteelGet Specs
P571-12000
P571-12000P571-1200012,000psi0.571in0.219inStainless SteelGet Specs
P571-15000
P571-15000P571-1500015,000psi0.571in0.219inStainless SteelGet Specs

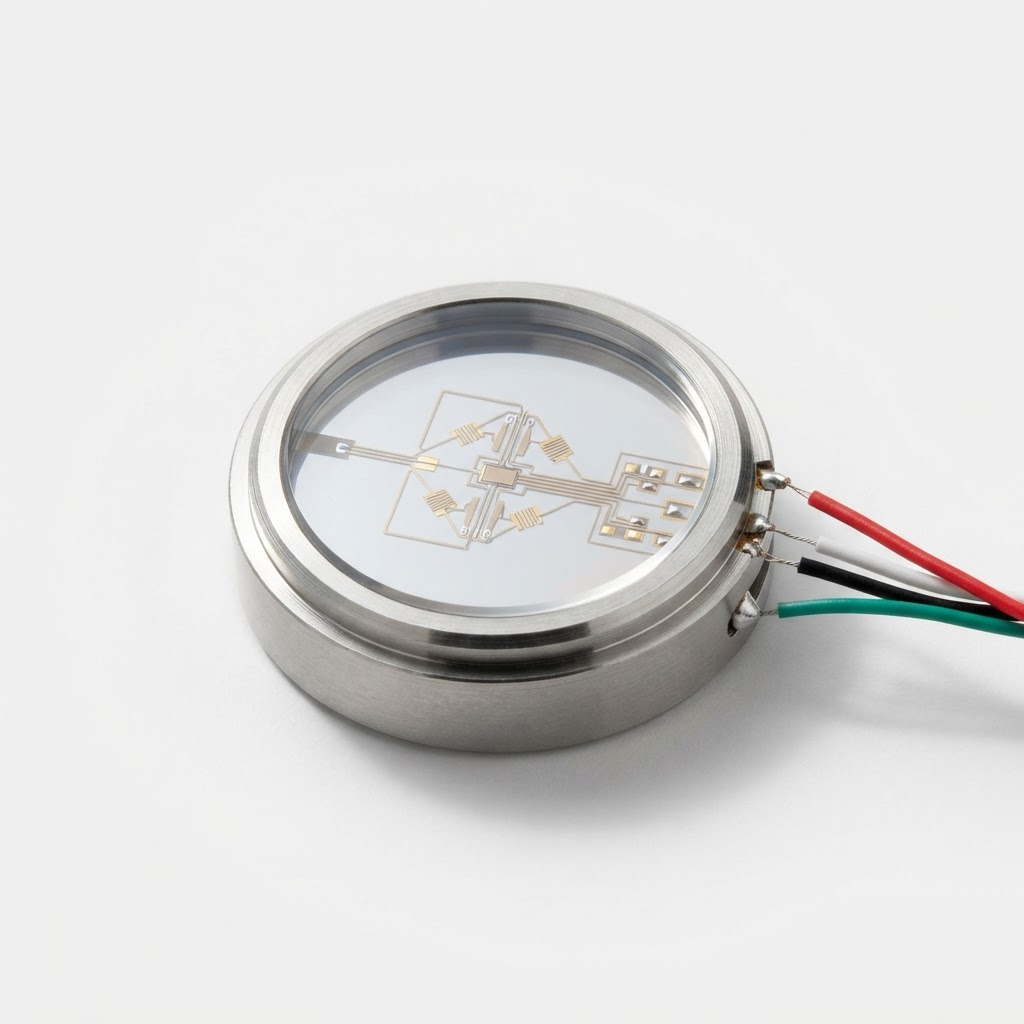

P940-30
P940-30P940-03030psi0.94in0.2inSapphireGet Specs
P940-50
P940-50P940-05050psi0.94in0.2inSapphireGet Specs
P940-100
P940-100P940-100100psi0.94in0.2inSapphireGet Specs
P940-150
P940-150P940-150150psi0.94in0.2inSapphireGet Specs
P940-200
P940-200P940-200200psi0.94in0.2inSapphireGet Specs
P940-300
P940-300P940-300300psi0.94in0.2inSapphireGet Specs
P940-500
P940-500P940-500500psi0.94in0.2inSapphireGet Specs
P940-1000
P940-1000P940-10001,000psi0.94in0.2inSapphireGet Specs
P940-1500
P940-1500P940-15001,500psi0.94in0.2inSapphireGet Specs
P940-2000
P940-2000P940-20002,000psi0.94in0.2inSapphireGet Specs
P940-2500
P940-2500P940-25002,500psi0.94in0.2inSapphireGet Specs
P940-3000
P940-3000P940-30003,000psi0.94in0.2inSapphireGet Specs
P940-5000
P940-5000P940-50005,000psi0.94in0.2inSapphireGet Specs
P940-6000
P940-6000P940-60006,000psi0.94in0.2inSapphireGet Specs
