Optical Liquid Level Sensors
Point level sensing for water and most liquids — no moving parts
Overview
Optical liquid level sensors use total internal reflection at a prism tip to detect the presence or absence of liquid — switching cleanly between air and liquid states with no moving parts. The OS Series offers six models ranging from basic to high-performance glass prism designs rated to 250 PSIG.
Key Features
No moving parts
Up to 250 PSIG
Digital & analog outputs
Compact footprint
Typical Applications
Medical device fluid presence detection
Industrial coolant level monitoring
Laboratory instrument liquid sensing
Printer ink level detection
Water treatment presence sensing
Vending machine liquid sensing
Markets Served
Medical DeviceIndustrialLaboratory
Specifications
Max pressureUp to 250 PSIG
Operating temp0°C to +70°C
OutputNPN/PNP switched, analog
Supply voltage5–30V DC
Response time<5 ms
Body materialsPolysulfone, SS, glass prism
Compatible liquidsWater, most aqueous solutions
CertificationsISO 9001
Key Models

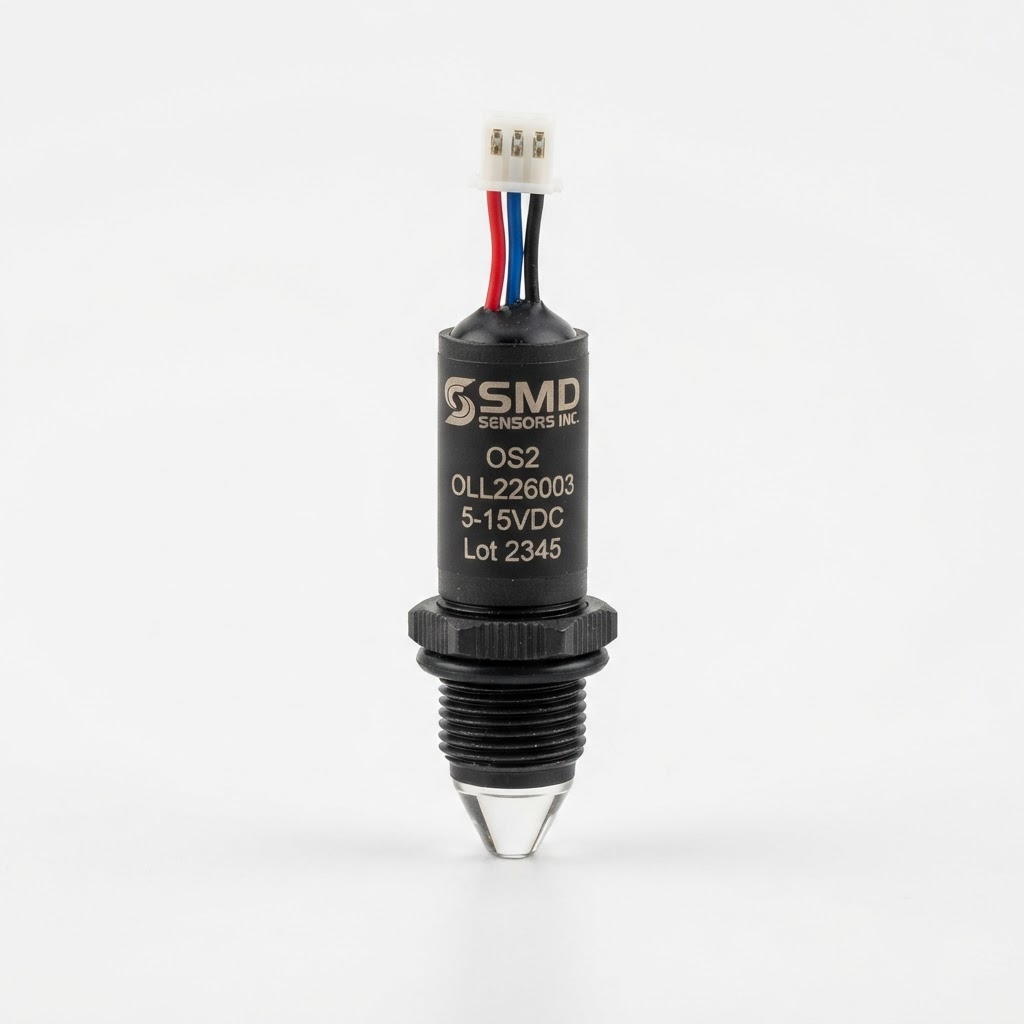

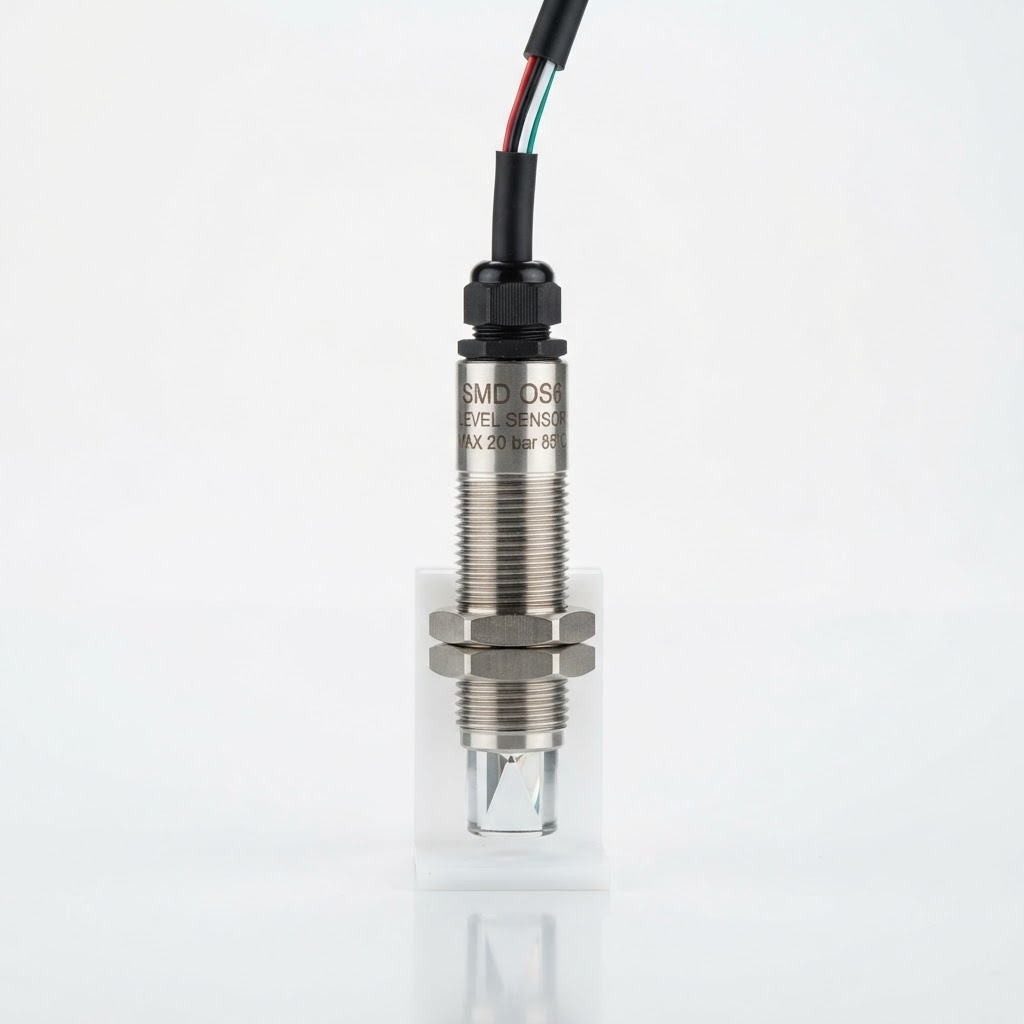

OS2 DigitalOS3 IndustrialOS4 GlassOS5 BasicOS6 POS GlassOS7 High Performance
Get a quote or sample
Our engineers are ready to discuss your application and recommend the right sensor configuration.
