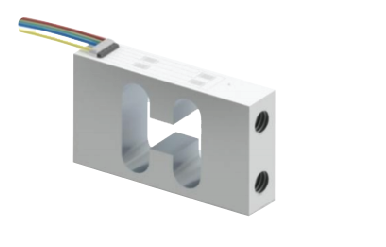

S251 High Range Load Cells (10 kg)
The S251 High Range is a low profile, single-point OEM load cell, offering high accuracy at a reasonable price.
Quick Overview
The S251 High Range is a low profile, single-point OEM load cell, offering high accuracy at a reasonable price. Like it's 6mm counterpart, the S251 High Range is ideal for medical instruments, low profile scales, and other high-resolution applications. This version is under 19 mm high and 7mm wide, allowing for up to 50 Kg capacity, full scale, high load applications. A 3,000 Ω thin-film strain gauge bridge provides low power consumption for battery and current loop applications. Options on various specifications and mounting (end holes/side holes) configurations are also available.
Features
- Low Profile
- Thin-film strain gauge
- Long-term stability
- Low power consumption
- Low hysteresis
Applications
- Medical instruments
- Medical scales
- Bag Weighing
- Postal scales
| Type | Platform |
| Maximum capacity | 22.046 lbf (10 kg) |
| Dimensions (L x W x H) | 1.25 x 0.28 x 0.71 in |

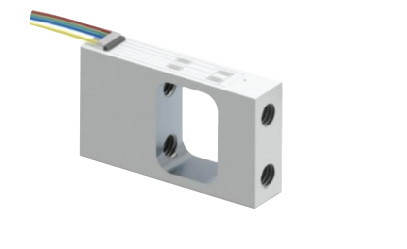

| Capacity | 10, 30, & 50 kg |
| Hysteresis | +/- 0.07% FSO |
| Non-Repeatability | +/- 0.025% FSO |
