Float Switches & Liquid Level Sensors
Multi-directional standard and fully custom liquid level sensors
Overview
SMD Fluid Controls manufactures a complete range of float switches and liquid level sensors for OEM applications. Standard and fully custom designs are available in vertical, horizontal, multi-level, and submersible configurations. Materials include stainless steel, polypropylene, PVDF, and custom-molded polymers for chemical compatibility.
Key Features
Stainless steel & plastic
Custom OEM molding
Multi-directional designs
Level + temperature combos
Typical Applications
HVAC cooling tower level control
Marine bilge pump float switching
Oil & gas separator level monitoring
Chemical processing tank level
Food processing liquid level control
Automotive washer fluid level
Markets Served
HVACIndustrialMarineOil & GasFood Processing
Specifications
Switch typesVertical, horizontal, multi-level, submersible
MaterialsSS 316L, PP, PVDF, custom polymers
Max pressureUp to 200 PSI
Max temperatureUp to 150°C
Electrical rating100 VA / 0.5 A max
ConnectionNPT, BSP, custom threads
OptionsLevel + temperature combination
CertificationsISO 9001, UL, CE options
Key Models

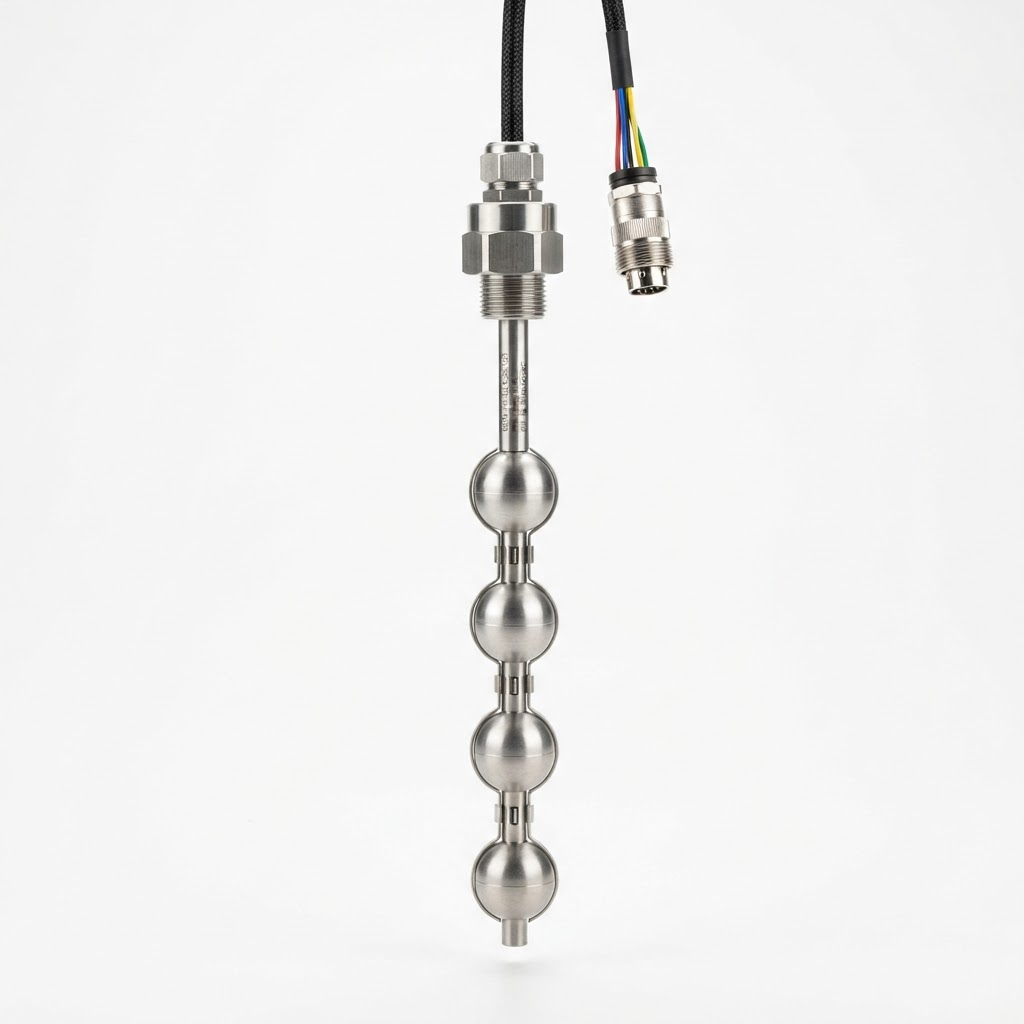

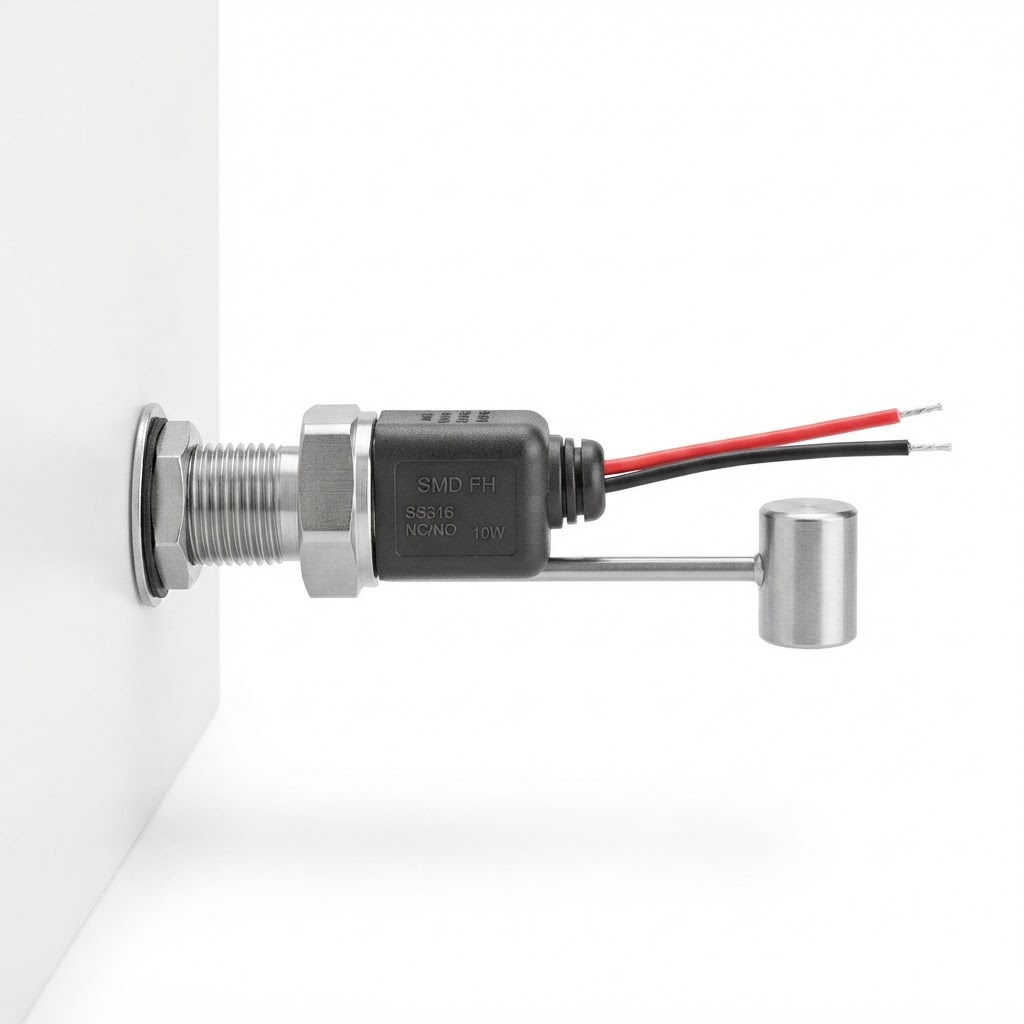

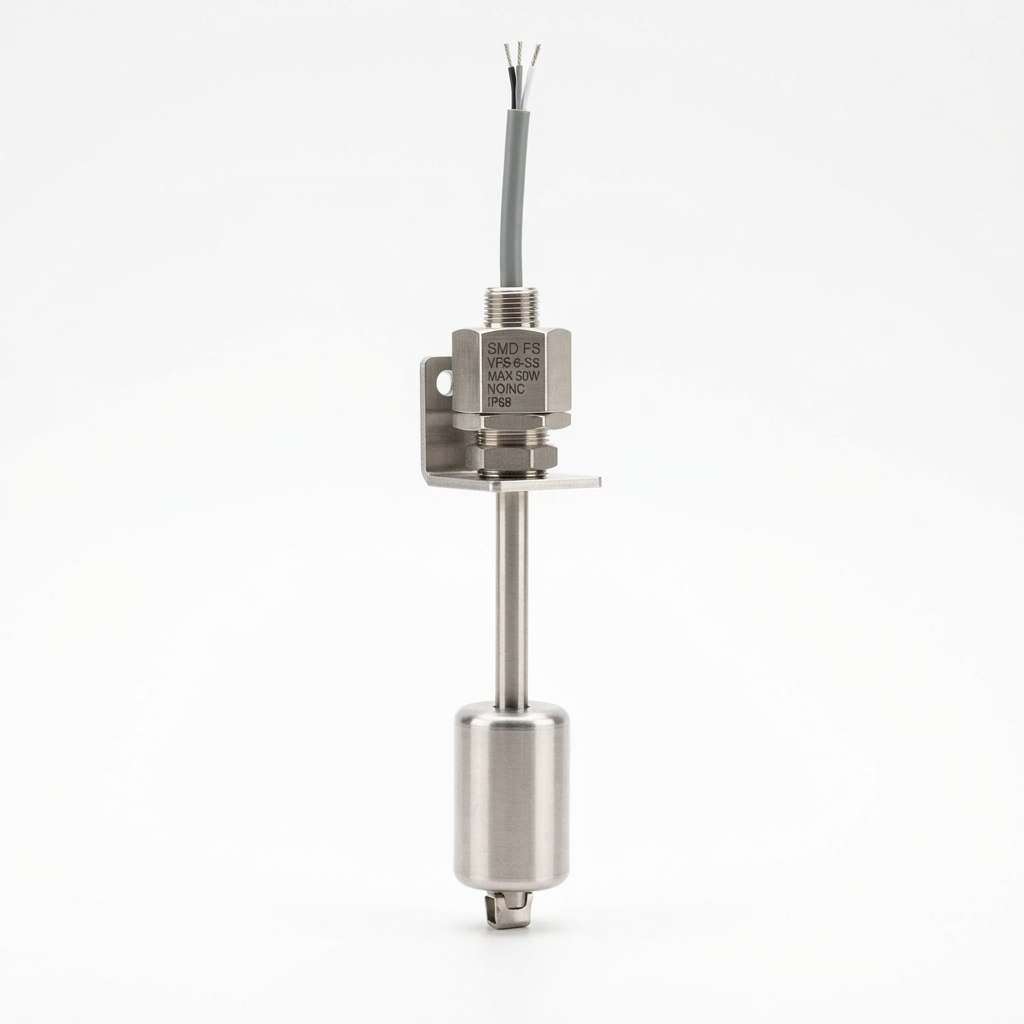

Vertical FloatHorizontal FloatMulti-LevelSubmersibleCombo Level+Temp
Get a quote or sample
Our engineers are ready to discuss your application and recommend the right sensor configuration.
