Capacitive Level Sensors
Non-invasive capacitive level sensors detect liquid through non-conductive vessel walls without any penetration or fluid contact. The CQV1000 provides 100 mm of continuous level measurement with a 4-20 mA output. The CPS provides point-level full/empty detection — both ideal for single-use systems, disposable vessels, and sealed containers.
Featured Model

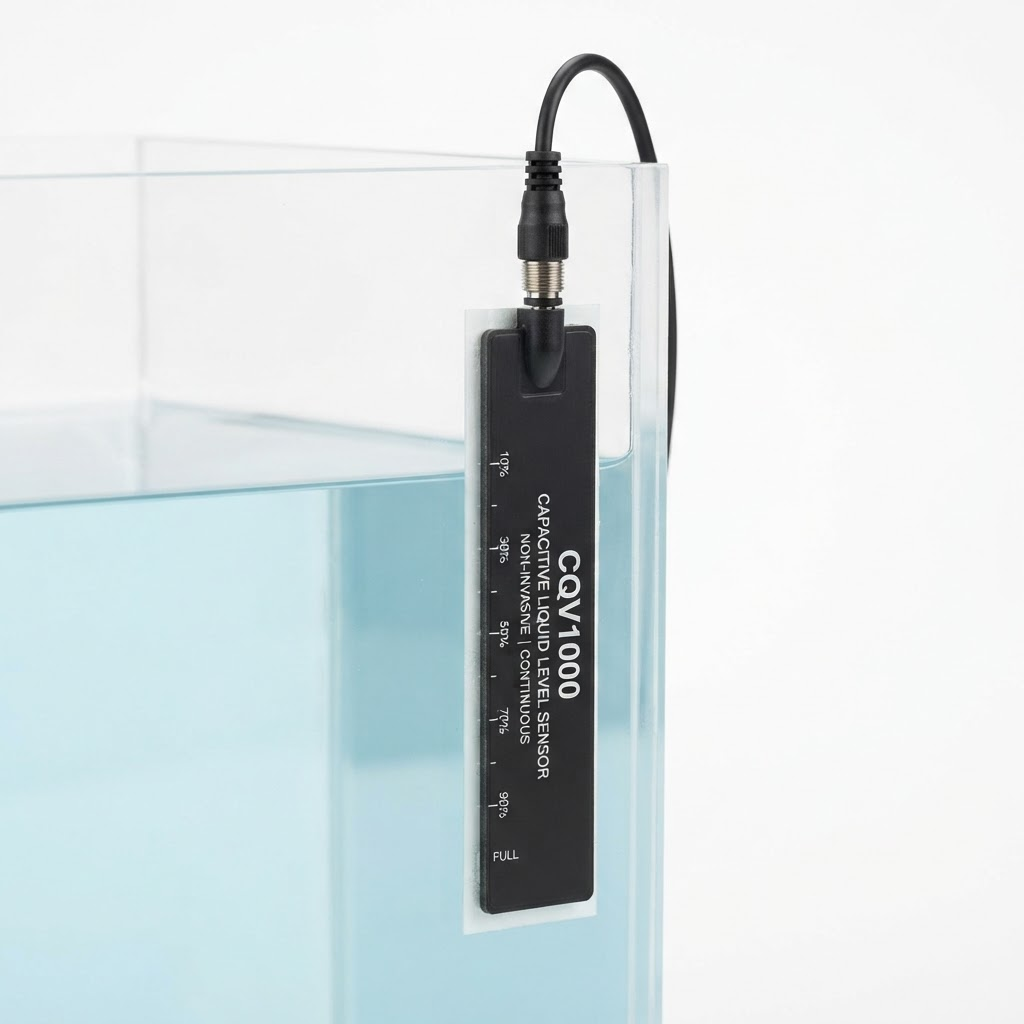

Model CQV1000
Continuous Capacitive Level Sensor
The CQV1000 mounts on the outside of a non-conductive vessel and senses liquid level through the vessel wall using an alternating electric field. As liquid level changes, the dielectric constant in the sensing field shifts proportionally, producing a linear 4-20 mA output. 100 mm sensing range, no penetration required — ideal for disposable bioreactor bags, sealed process vessels, and reagent containers.
Sensing Range
100 mm
Output
4-20 mA
Design
External mount, no penetration
Markets
Biopharma · Food · Medical
Industries Served
Where our capacitive sensors are used
Biopharmaceutical
Disposable bioreactor bags, buffer prep, single-use vessels
Food & Chemical
Tank level monitoring, ingredient dosing, process vessels
Medical Devices
Reagent containers, sample prep, disposable cartridges
Fluid Management
Sealed reservoirs, coolant tanks, electrolyte vessels
Lab Automation
Sample containers, automated liquid handling
Semiconductor
Chemical vessels, ultrapure water storage monitoring
Industrial Process
Sealed tanks, tanks with aggressive media, hygienic process
Diagnostics
Reagent cartridges, IVD systems, point-of-care instruments
Choosing the Right Sensor
Which capacitive level sensor fits your application?
The CQV1000 and CPS solve different measurement challenges. Use these starting points — or contact our engineering team for vessel-specific guidance.
If you need
Continuous level measurement 0–100 mm
Start with
CQV1000
100 mm sensing range, 4-20 mA output, mounts to outside of non-conductive vessel.
If you need
Easy mount with adhesive backing
Start with
CQV1000-PSA
CQV1000 with pressure-sensitive adhesive — simplified OEM installation.
If you need
Simple full/empty point detection
Start with
CPS
Non-invasive single-point switched output for tank full or empty indication.
If you need
Display and programmable setpoints
Start with
CQV8243
Controller/display unit for CQV1000 — digital display and programmable output setpoints.
Capacitive Level Sensor Models
| Model | Name | Type | Output | Sensing | Notes | ||
|---|---|---|---|---|---|---|---|
 | CQV1000 | Continuous Capacitive Level Sensor | Continuous | 4-20 mA | 100 mm | Through non-conductive vessel walls, biopharm, food, chemical | View Product |
| CQV1000-PSA | CQV1000 with Pressure-Sensitive Adhesive | Continuous | 4-20 mA | 100 mm | PSA backing for easy mount and flexible OEM installation | View Product |
| CQV8243 | CQV Control/Display Box | Controller/Display | Digital display | Programmable | Digital display and programmable outputs for CQV1000 integration | View Product |
| CPS | Point-Level Capacitive Sensor | Point Level | Switched | Single point | Non-invasive, compact, through-wall tank full/empty detection | View Product |
