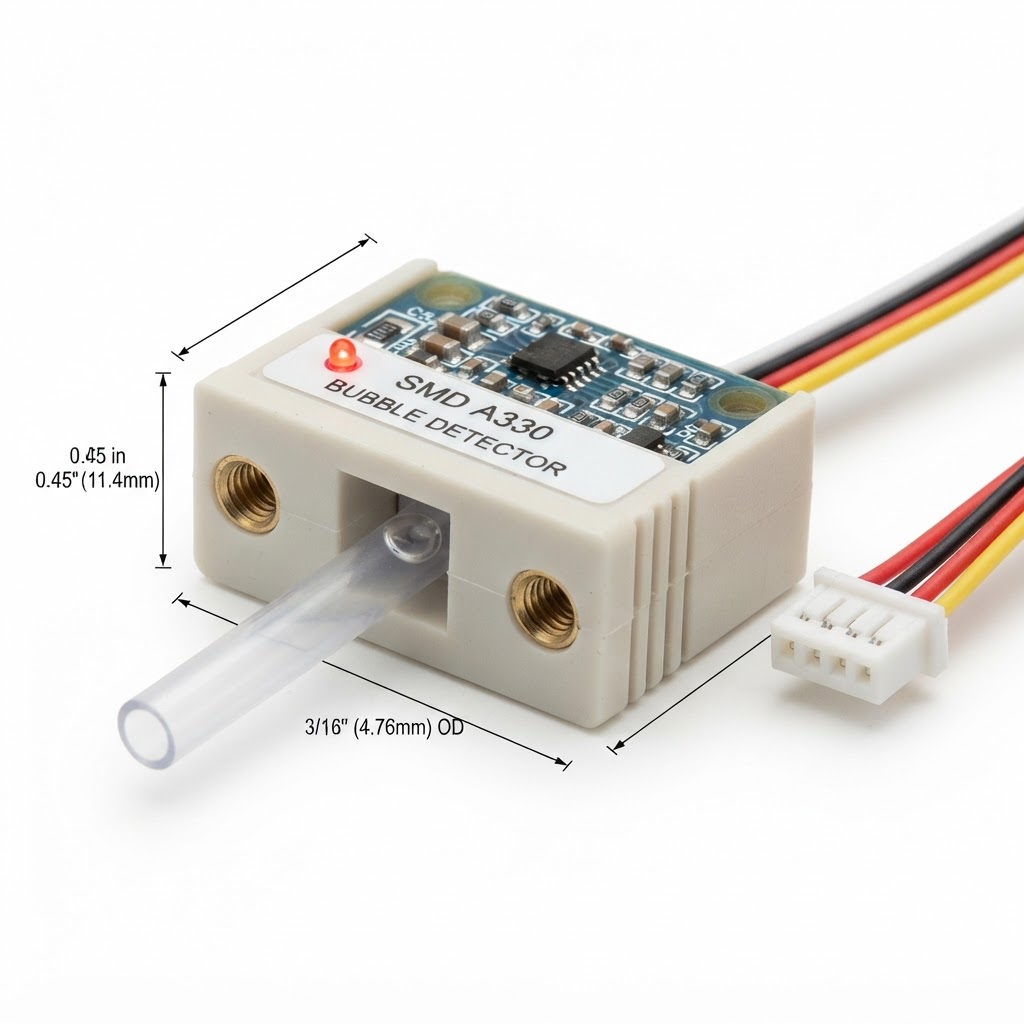

A330 - AX30 bubble sensor 3/16" tubing
AX30 bubble sensor 3/16" tubing
Quick Overview
The A330 Bubble Sensor is one of our standard sensors for use with most 3/16″ OD tubing. Using proprietary digital noninvasive ultrasonic bubble sensing technology, the A330 accurately and reliably detects bubbles in a wide variety of fluids and tubing materials. Custom characteristics can be provided for OEM users. Our experienced engineers will work with you to develop and deliver a custom prototype to suit your application's needs.
Features
- Optional integrated self-test function
- Power consumption as low as 3mA on some models
- Dry-couples with a variety of tubing materials
- Custom pinouts, cables, and connectors available
- Digital “smart” circuit for superior customability
- Noninvasive ultrasonic bubble sensing technology
- Optional red/green LED for visual output indication
Applications
- Medical instrumentation
- Semiconductor processing
- Food dispensing equipment
- Chemical processing
- Pharmaceutical industry
| Dimensions in. [mm] | 1.07 x 0.80 x 0.68 [27.2 x 20.3 x 17.3] |
| Minimum Bubble Size | 1 µL |
| Nominal Tube OD in. [mm] | 0.18 [4.76] |
| LED Options | LED or No LED |
| Mounting Options | SAE or Metric Threaded Inserts |
